1.Machine production of EVA vegetable basket, EVA obstacle cone, EVA bicycle seat cushion
2.Delivery time :35-40days
3.Model:FDE9106
4.Condition:New
5.Certification：CE Certificated
6.Warranty：1 Year
7.Voltage:AC380V /AC220V/50HZ/60HZ.
8.Unit price/Set:85000-90000USD
9.Place of Origin：Fujian, China
10.Port:  XIAMEN Port

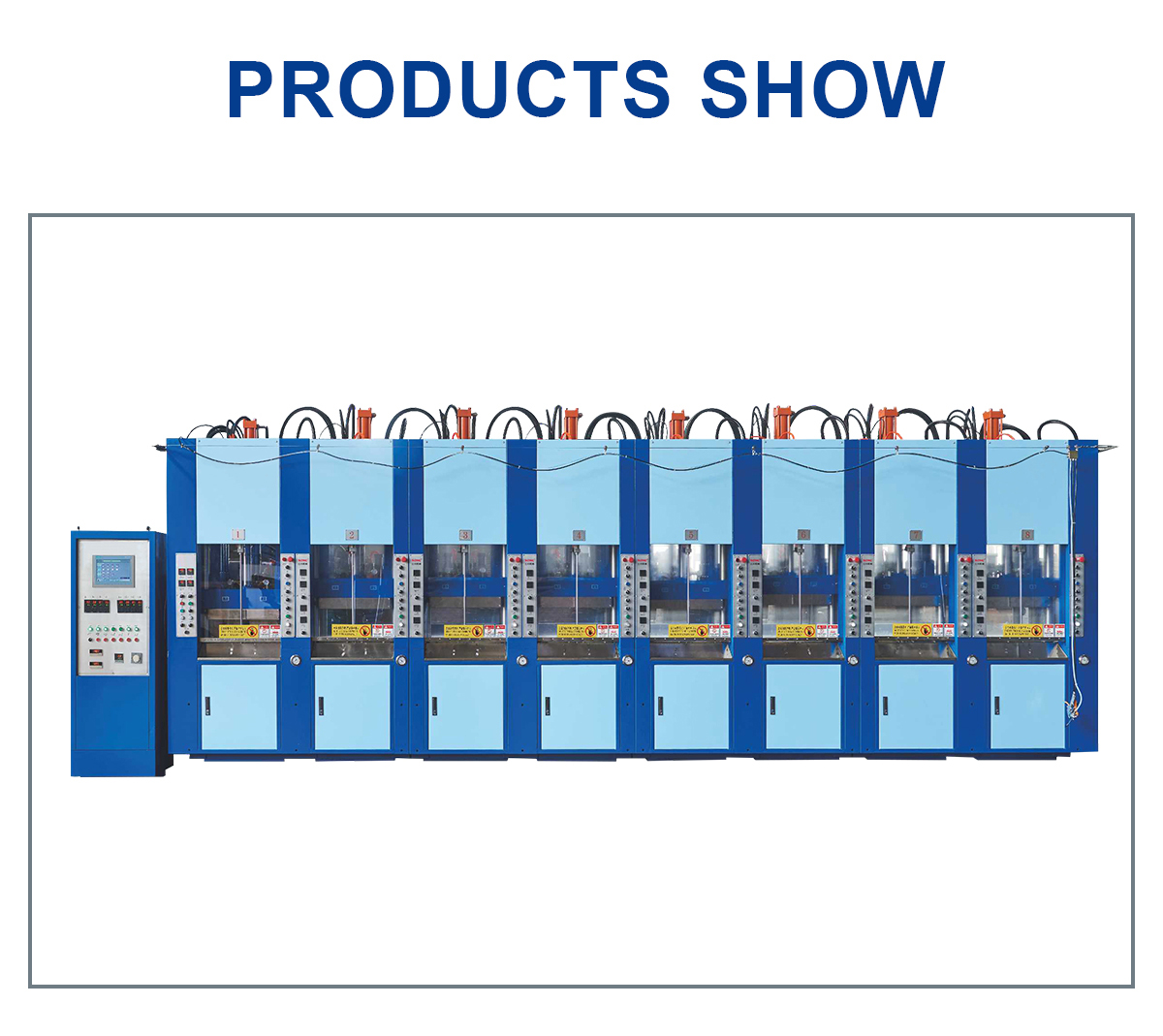

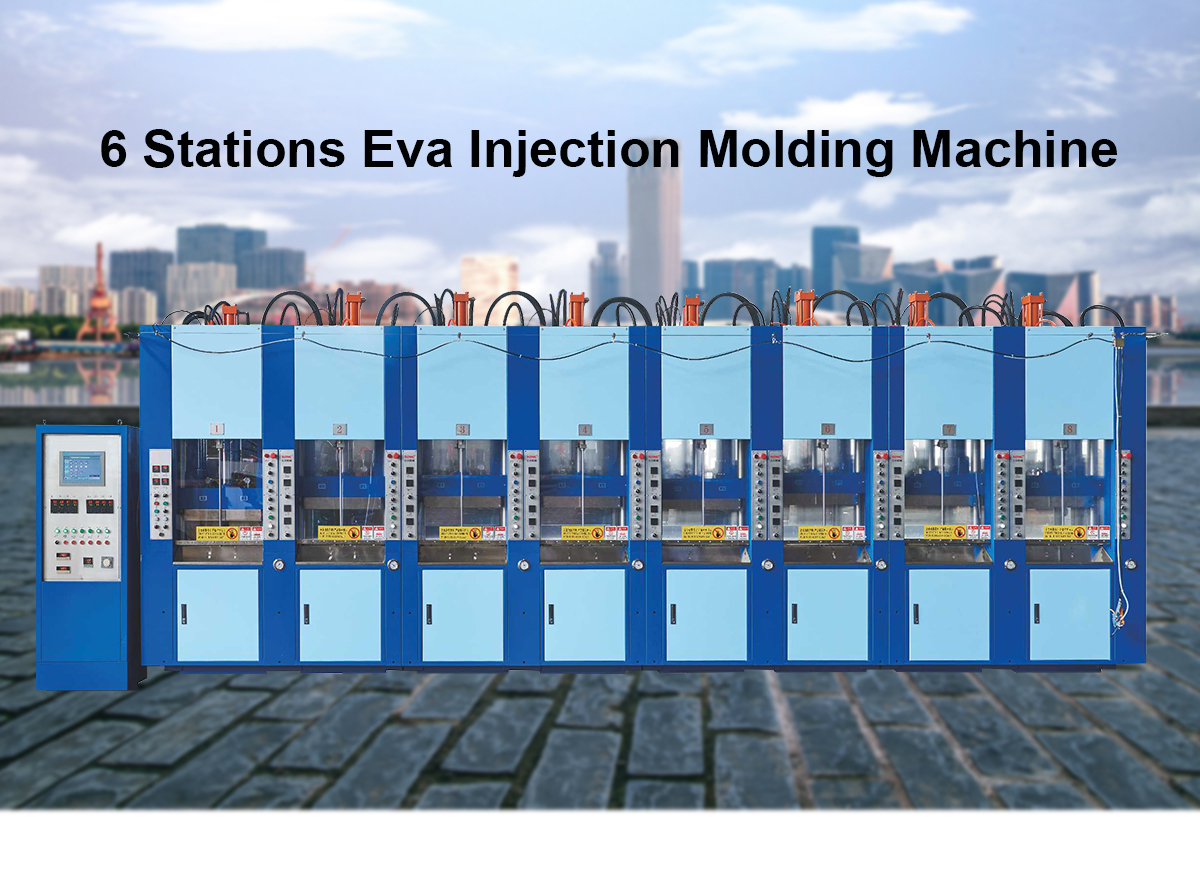

EVA Sole injection molding machine &EVA Slipper injection molding machine&EVA Slipper production line.

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

Descriptions

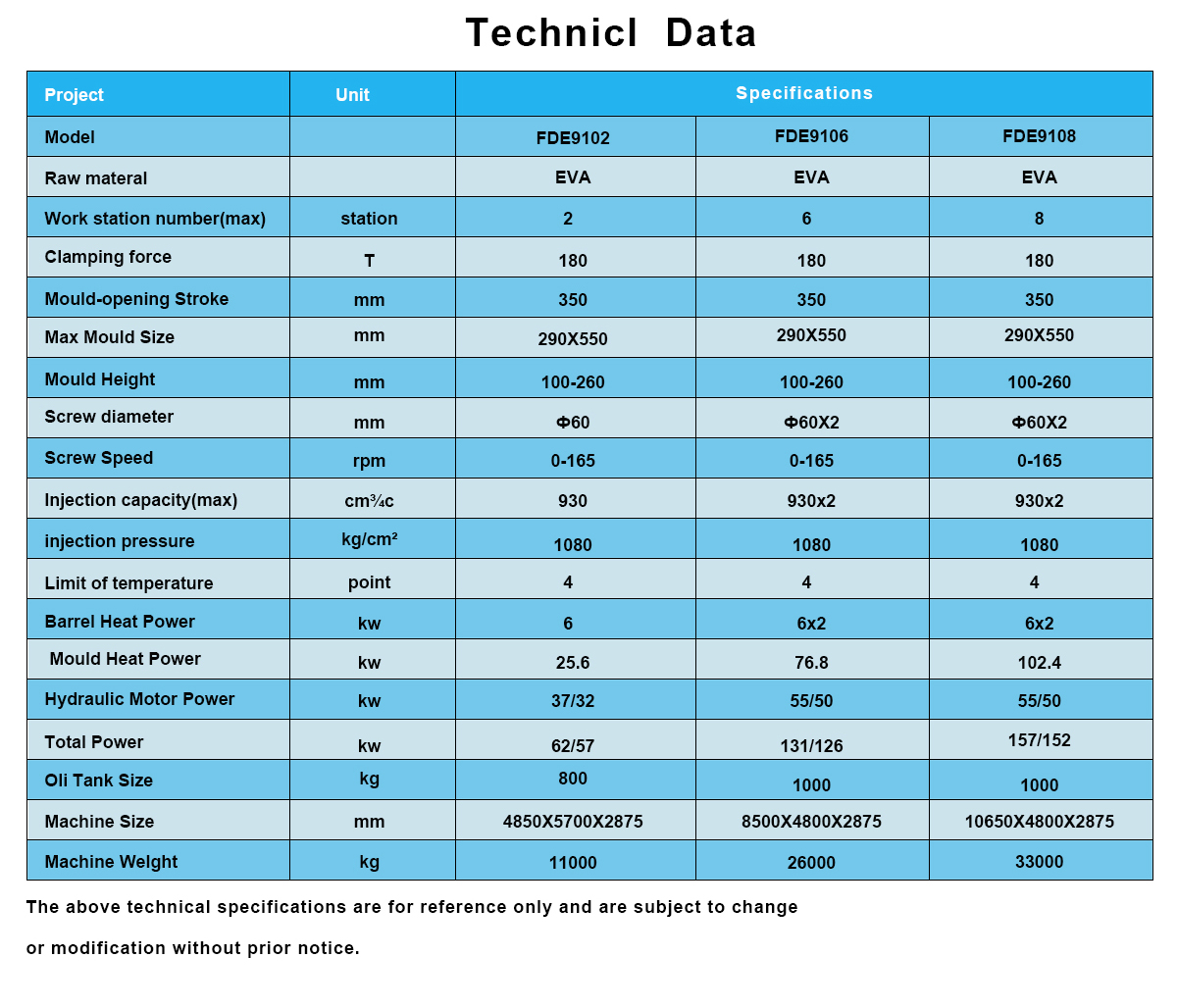

  • Model
    FDE9106
  • Work station number
    6 stations
  • Raw Materials
    EVA
  • Clamping Force
    180T
  • Max mould size
    290*550mm
  • Mould height
    100-260mm
  • Screw diameter
    60mm*2
  • Screw speed
    0-165mm
  • Max injection capacity
    930cm3/cc
  • Injection pressure
    1080cm2
  • Limit of temperature
    4 pints
  • Barrel heat power
    6kw*2
  • Mould heat power
    76.8kw
  • Hydraulic motor power
    55/50kw
  • Total power
    131/126kw
  • Oil Tank Size
    1000kg
  • Machine Size
    8500*4800*2875mm
  • Machine Weight
    26000kg

Specification
