Home    PVC Series Machine    12 stations Rotary Type PVC slipper making machine.
1.Machine can produce of PVC ultra light slippers, PVC ultra light sandals, PVC light sole and TPR sole.
2.Raw material: PVC powder or granular. Also suitable for recycling PVC materials
3.Delivery time :30-35days
4.Place of Origin:Fujian, China
5.Model:EA112Q+S
6.Condition:New
7.Warranty: 1 Year
8.Voltage:AC380V /AC220V/50HZ/60HZ.
9.Unit price/Set:22800-24500USD

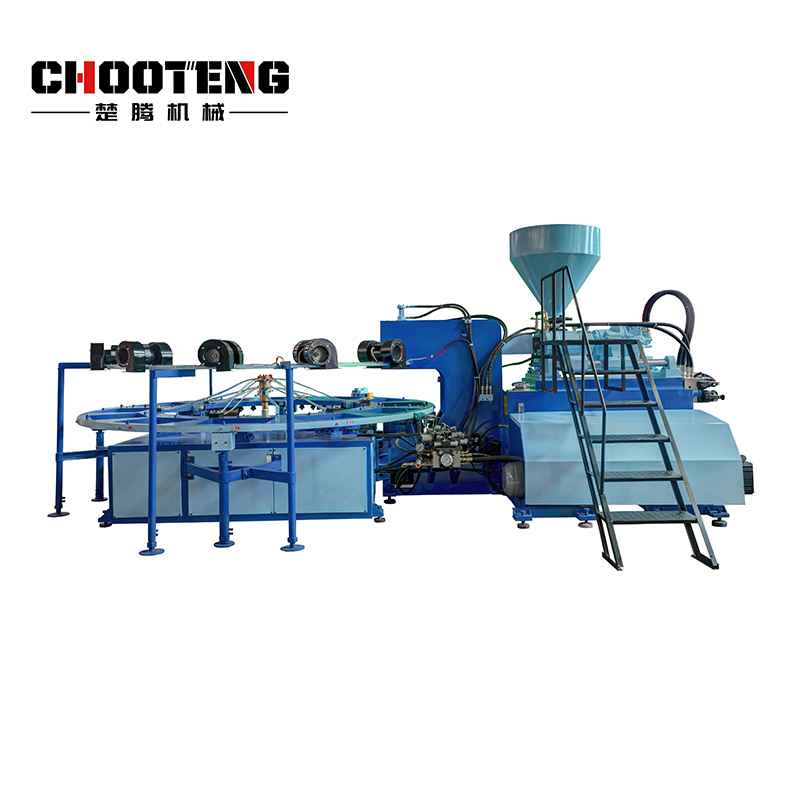

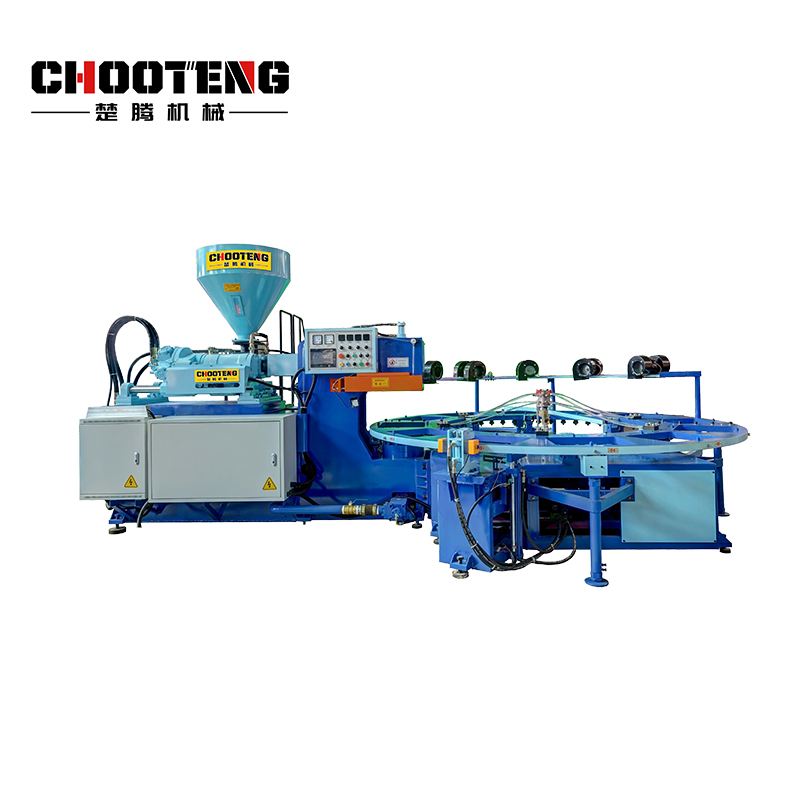

12 stations Rotary Type PVC slipper making machine.

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

1.Suitable for producing all kinds of foamed or non-foamed high-grade monochrome soles, air blowing slippers and other footwear.


2.It is suitable for injection molding of TPR, PVC, crystal, PUR foamed or non-foamed materials



3.Equipped with air blowing mechanism, the product is light in weight, excellent in flexibility, and good in surface quality.

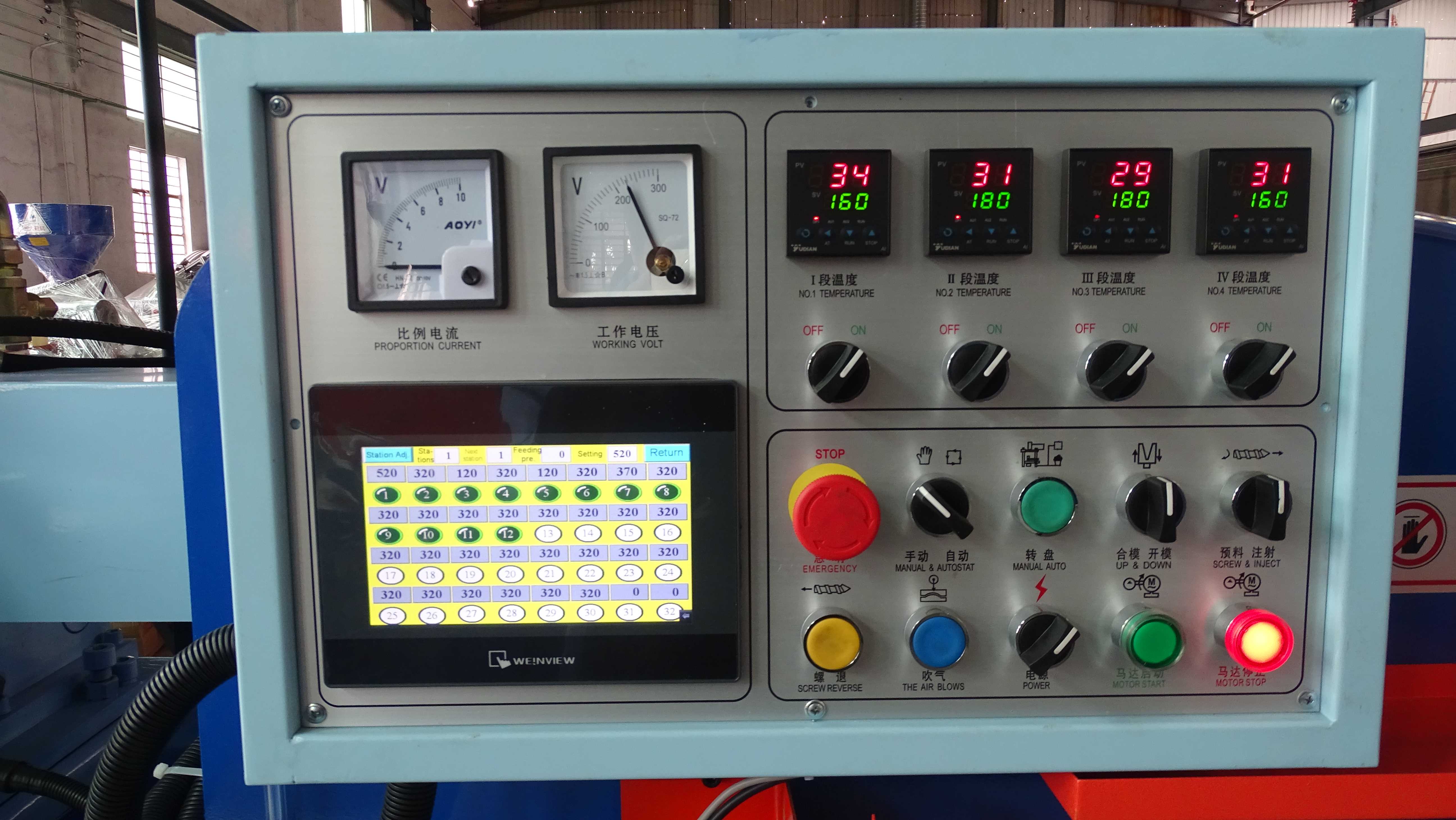

4.Using industrial-grade man-machine interface, PLC program control, touch screen display, accurate measurement and convenient operation.


5.Proportional stepless pressure regulation makes the system more stable, reliable and safe.


6.Equipped with a servo energy-saving system, saving power about 30%.


7.Tripping automatic mold opening system greatly reduces labor intensity.


8.Mold water cooling system greatly speeds up the cooling and setting time of in-mold products and increases product output.



9 .One mold and one pair The template structure, super large template, so that the output can be increased by nearly twice.


Descriptions

  • Model
    EA112Q+S
  • Stations
    12 stations
  • Raw Material
    PVC;TPR;PUR
  • Cooling system
    Mold water cooling system
  • Automatic mold opening system
    Have
  • Energy saving system
    Servo energy saving system
  • Mold Structure
    One mold 1 pair;One mold 1 PC
  • Clamping force
    70 Tons
  • Screw rotary speed
    0-200
  • Screw Diameter
    75mm
  • Injection Capacity
    880g
  • Injection hydraulic pressure
    140KG/CM2
  • Injection speed
    0-10cm/sec
  • Mould Space
    420mm*350mm*240mm
  • Machine Size
    6000mm*3000mm*2200mm
  • Machine Weight
    8 Tons

Specification
