1.Machine production of 1&2 color PVC TPR sole,1&2 color PVC slipper or 1&2 color sandle
2.Raw material: PVC powder or granular. Also suitable for recycling PVC materials
3.Delivery time :30-35days
4.Place of Origin:Fujian, China
5.Model:FEF224QV
6.Condition:New
7.Warranty: 1 Year
8.Voltage:AC380V /AC220V/50HZ/60HZ.
9.After-sales Service Provided:Engineers available to service machinery overseas

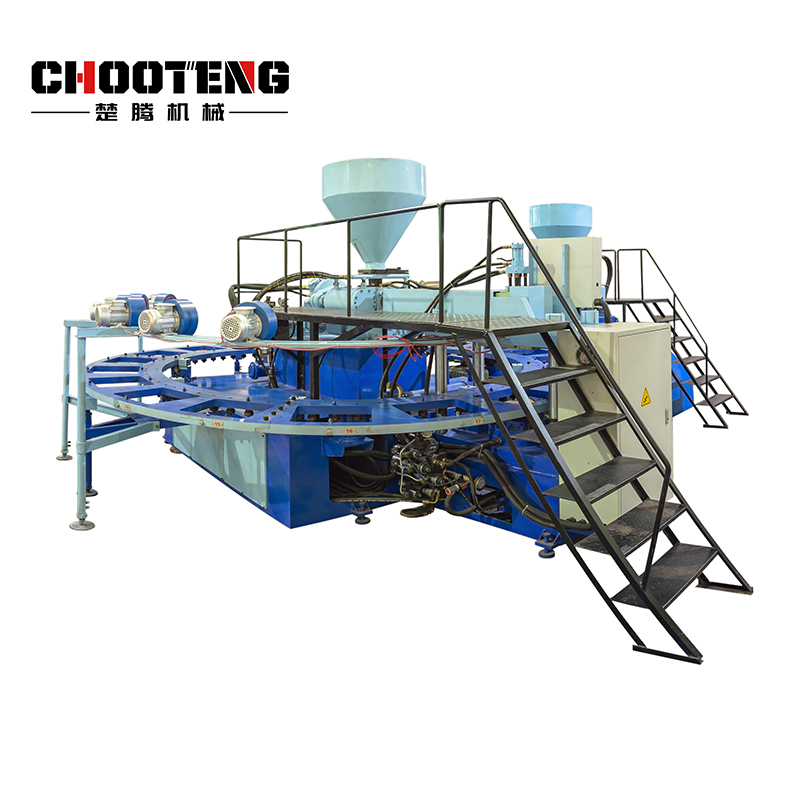

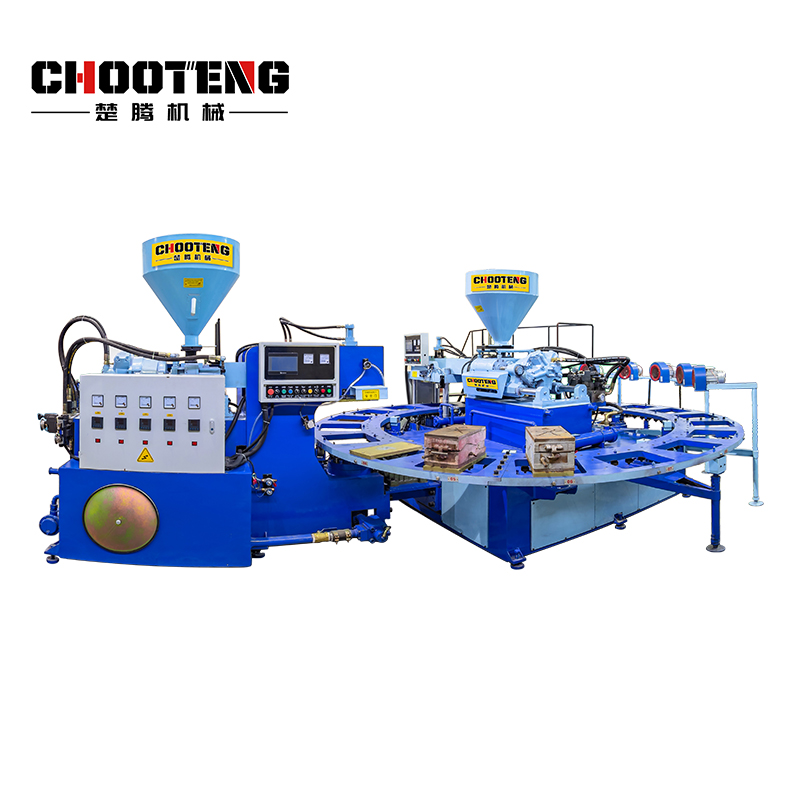

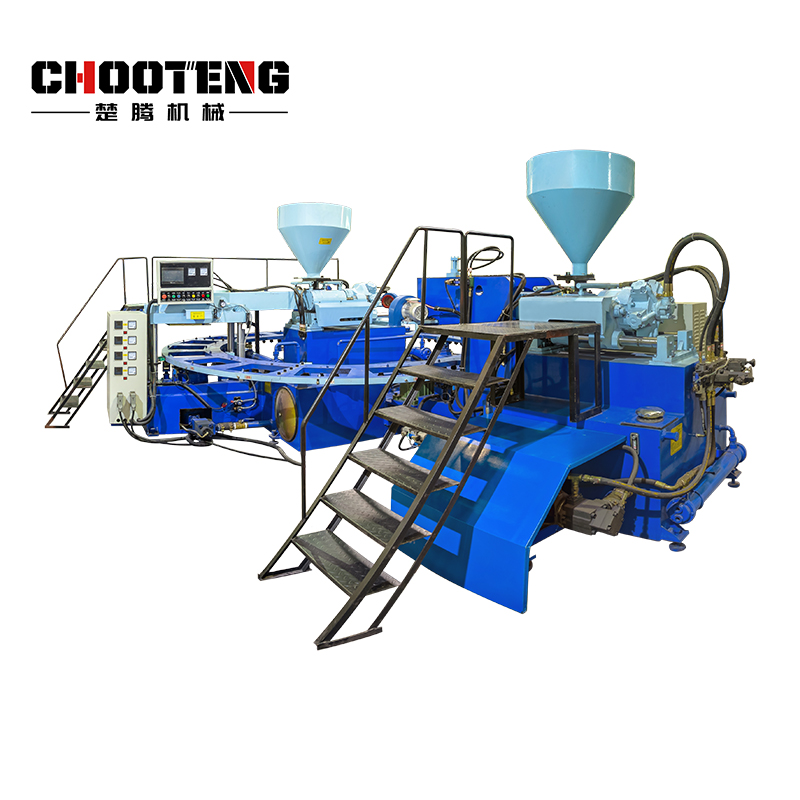

Two Color Air blowing slipper Making Machine

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

1. This machine is specialized in the manufacture of various kinds of high-grade one/two color sandals,one/two crystal slippers, and one/two color TPR &PVC sole.



2. This unit is suitable for all kinds of thermoplastic raw material, foaming or non-foaming, such as PVC,TPR etc.



3.Equipped with a mold pre-heating system to facilitate mold pre-heating in cold areas, so as to reduce excessively high defective products when starting up.



4.Proportional stepless pressure adjustment system, stable pressure, linear stepless adjustment, precise injection, safe and reliable.



5.Equipped with various protection switches, it is more convenient to protect the components of the equipment and the safety of the operator.



6.All actions are controlled by PLC and man-machine interface, which makes the actions more precise and the operation more convenient.



7.Selecting automatic mold opening manipulator, greatly reducing labor intensity.



8.Selecting servo energy saving system, Could save about 30% energy.



Descriptions

  • Model
    FEF224QV
  • Stations
    24 stations
  • Raw Material
    PVC;TPR;PUR
  • Clamping Force
    80Tons*2
  • Screw Diameter
    75mm+55mm
  • Screw rotary speed
    0-200
  • Max Injection Capacity
    800g+500g
  • Injection hydraulic pressure
    140KG/CM2
  • Injection speed
    0-10cm/sec
  • Mould Space
    500mm*240mm*240mm
  • Heater of barrel
    9kw+6.5kw
  • Total Power
    56kw
  • Machine Size(L*W*H)
    7500mm*6000mm*2200mm
  • Machine Weight
    13Tons
