Home    PVC Series Machine    Three color PVC injection slipper machine
1.Machine production of PVC ultra light 3 color slippers, PVC ultra light 3 color sandals, PVC  light sole and TPR sole.
2.Raw material: PVC powder or granular. Also suitable for recycling PVC materials
3.Delivery time :30-35days
4.Place of Origin:Fujian, China
5.Model:FDC324QV
6.Condition:New
7.Warranty: 1 Year
8.Voltage:AC380V /AC220V/50HZ/60HZ.
9.After-sales Service Provided:Engineers available to service machinery overseas

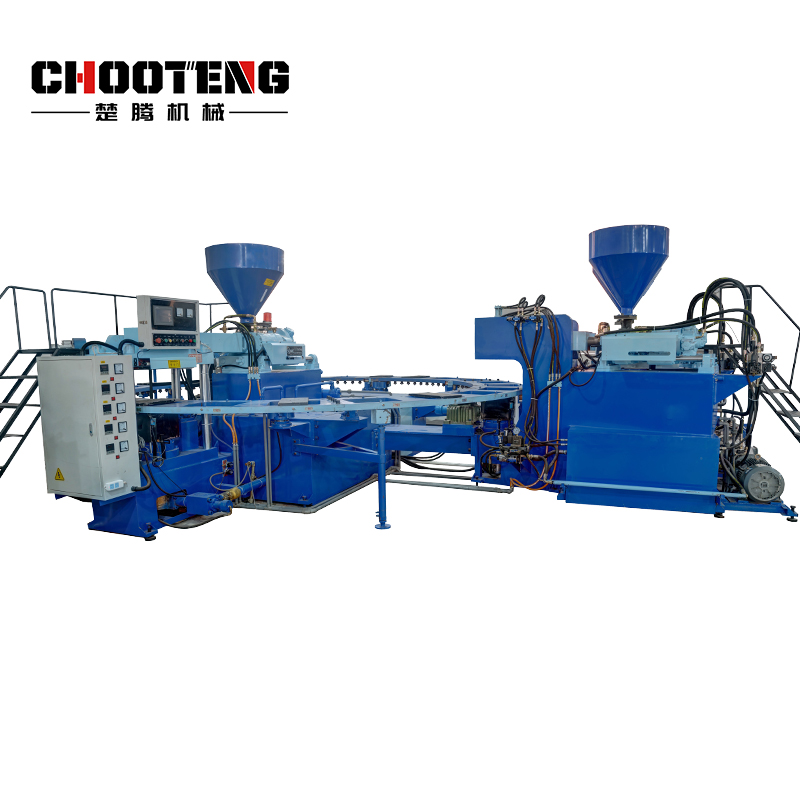

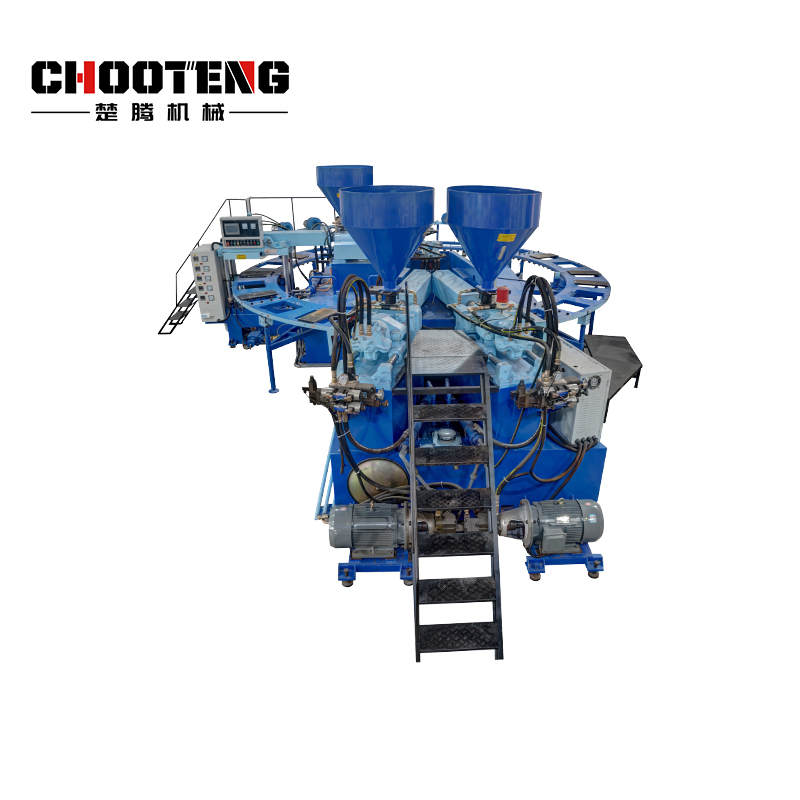

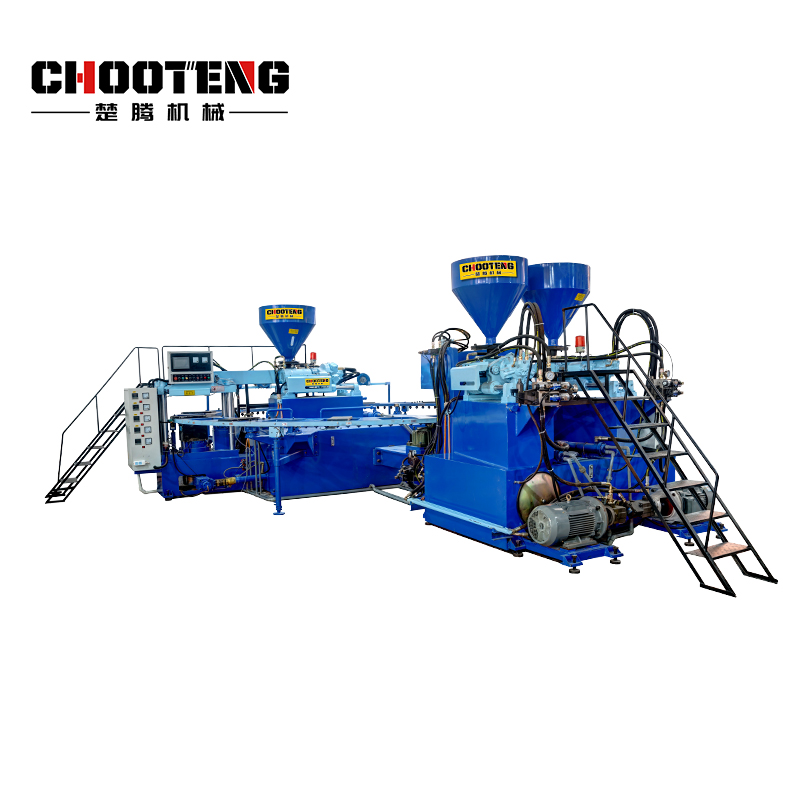

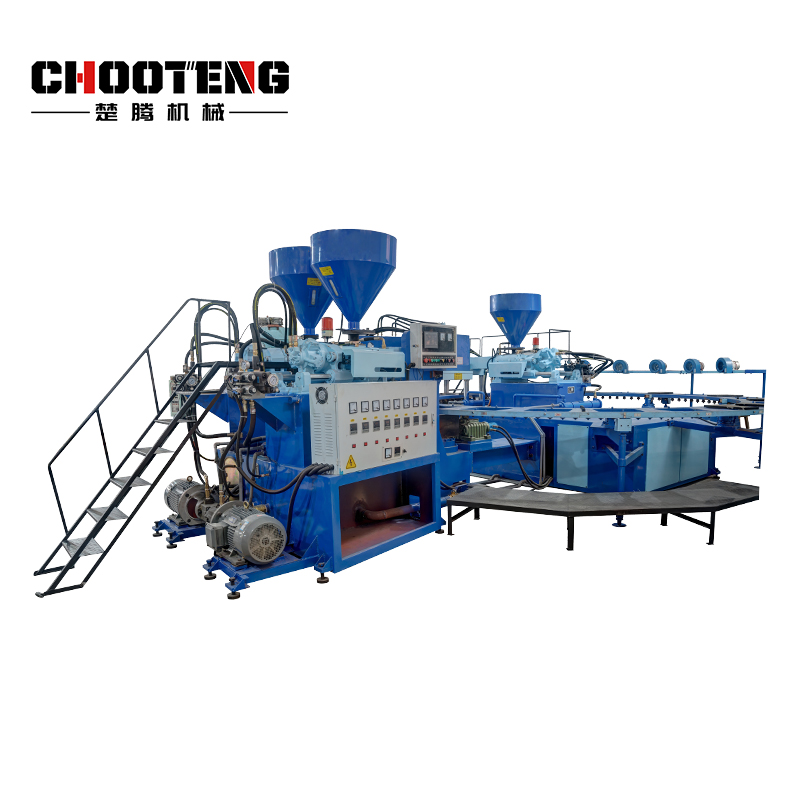

Three color PVC injection slipper machine

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

1.It can be used with various molds, using TPR, PVC foaming and non-foaming materials to produce single, double, and three-color soles, upper slippers, sandals or non-foaming plastic shoes.



2.Equipped with a blowing mechanism, the products produced are light, soft, bright and bright, which can reduce the weight by 20%-30% compared with traditional production methods



3.It can produce two-color, three-color, camouflage, mixed-color and other shoes, and can produce two two-color products with the same background color and different colors at the same time, with complete functions, wide application range, and low cost input;



4.Equipped with a mold preheating system, which is used for mold preheating in cold weather to prevent a large number of defective products due to overcooling of the mold when starting up;



5.Super large turntable design, large mold side opening will not collide, safe and reliable;



6.Stepless pressure adjustment, touch parameter setting, special mechanical and electrical safety mechanism design, precise action, safe and reliable, convenient adjustment and simple operation;



7.Optional automatic mold opening manipulator, greatly reducing labor intensity.



8.Optional servo energy-saving system can greatly reduce energy loss and save energy up to 30%.




Descriptions

  • Model
    FDC324QV
  • Stations
    24 stations
  • Raw Material
    PVC;TPR;PUR
  • Screw Diameter
    75mm+50mm*2
  • Clamping Force
    80Tons*2
  • Max Injection Capacity
    850g+460g*2
  • Injection hydraulic pressure
    140KG/CM2
  • Injection speed
    0-10cm/sec
  • Screw rotary speed
    0-200
  • Mould Space
    500mm*240mm*240mm
  • Heater of barrel
    9kw+6.5kw*2
  • Motor
    22kw+15kw+15kw
  • Total Power
    68kw
  • Machine Size(L*W*H)
    7800mm*6000mm*2200mm
  • Machine Weight
    16 Tons
