1.Machine can produce of PVC ultra light slippers, PVC ultra light sandals, PVC light sole.
2.Raw material: PVC powder or granular. Also suitable for recycling PVC materials
3.Delivery time :30-35days
4.Place of Origin：Fujian, China
5.Model:FDA136QV
6.Condition:New
7.Warranty: 1 Year
8.Voltage:AC380V /AC220V/50HZ/60HZ.
9.Unit price/Set:22800-26500USD
10.After-sales Service Provided：Engineers available to service machinery overseas

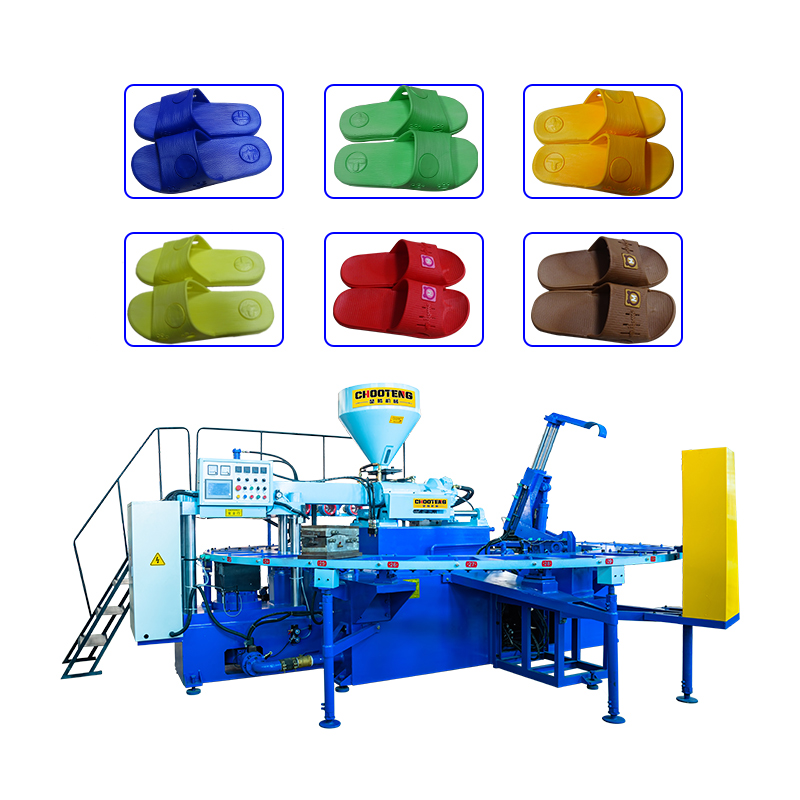

36 Stations PVC slipper making machine

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

1.Machines mainly produce monochrome PVC slippers, sandals, PVC soles, PVC leather shoes, TPR sole.



2.The raw materials can be recycled with TPR, PVC powder, PVC, PVC crystal transparent raw materials, PUR foaming or injection molding production without foaming



3.Equipped with Air blowing system, light product quality, good softness, bright surface, comfortable texture.



4.Design of oversized turntables 36stations , the cooling time of the product is lengthened, the set is good, the output is high, and the quality is better.



5.Optional mechanical opening the mold system, greatly reducing labor intensity.








Descriptions

  • Model
    FDA136QV
  • Working stations
    36 stations
  • Raw Material
    PVC；TPR
  • Mold shape
    Square ；V shaped
  • Injection Capacity
    750g；850g
  • Diameter of screw
    70mm；75mm
  • Mould clamping force
    80 Tons
  • Injection hydraulic pressure
    140KG/CM2
  • Injection speed
    0-10cm/sec
  • Screw rotary speed
    0-200
  • Mould Space
    500*240*280mm
  • Heater of barral
    8Kw
  • Motor
    22kw
  • Total Power
    33kw
  • Machine Size(L*W*H)
    6000*7000*2200mm
  • Machine Weight
    9 Tons
