1.Machine can produce of EVA slippers, EVA sandals, EVA sole.
2.Delivery time :35-40days
3.Model:FDE9106
4.Condition:New
5.Certification：CE Certificated
6.Warranty：1 Year
7.Voltage:AC380V /AC220V/50HZ/60HZ.
8.Unit price/Set:85000-90000USD
9.Place of Origin：Fujian, China
10.Port:  XIAMEN Port

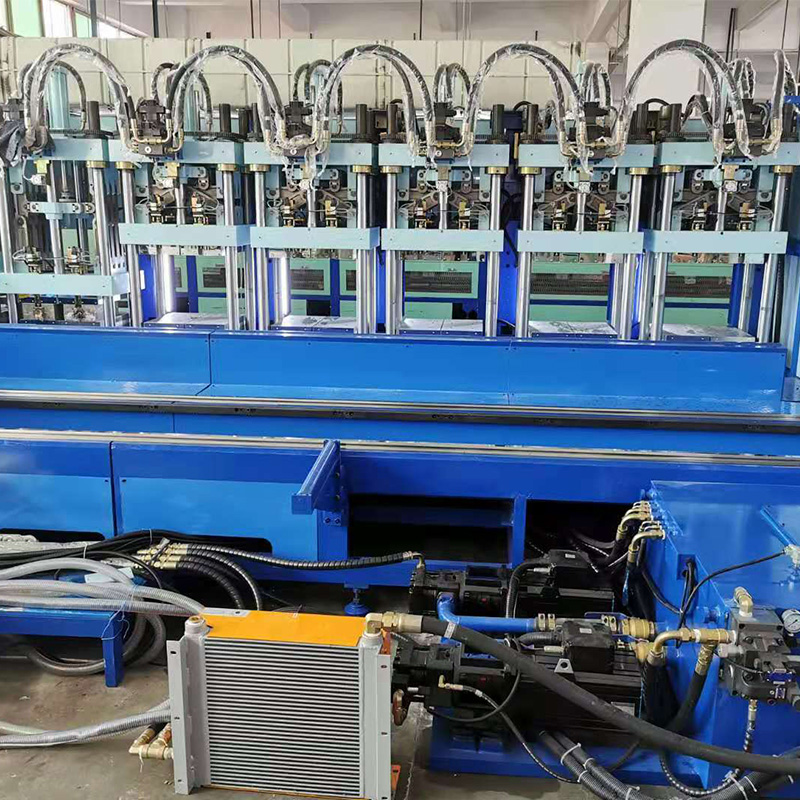

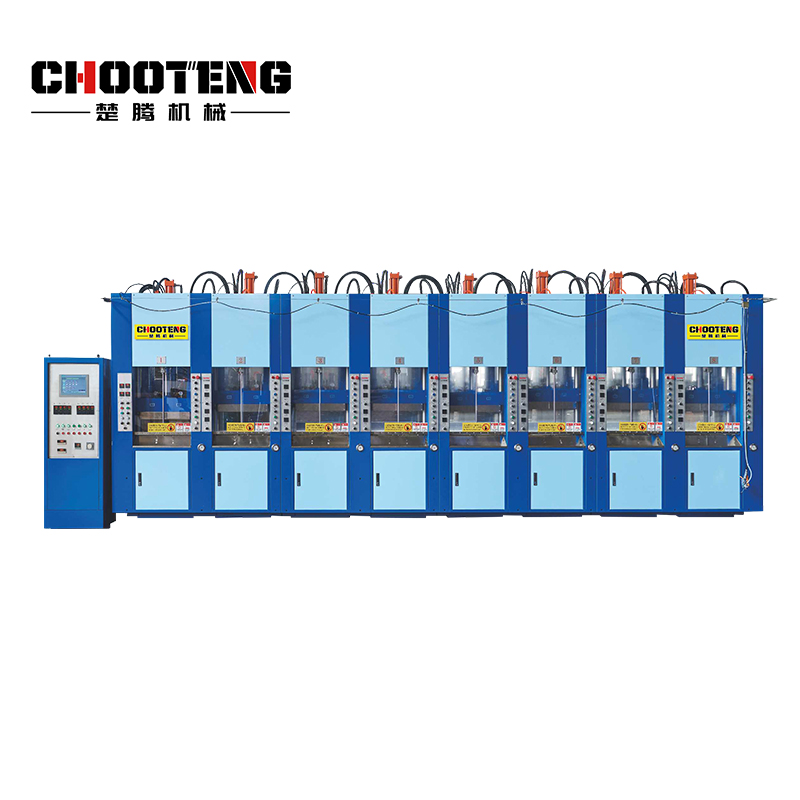

EVA Slipper injection molding machine

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

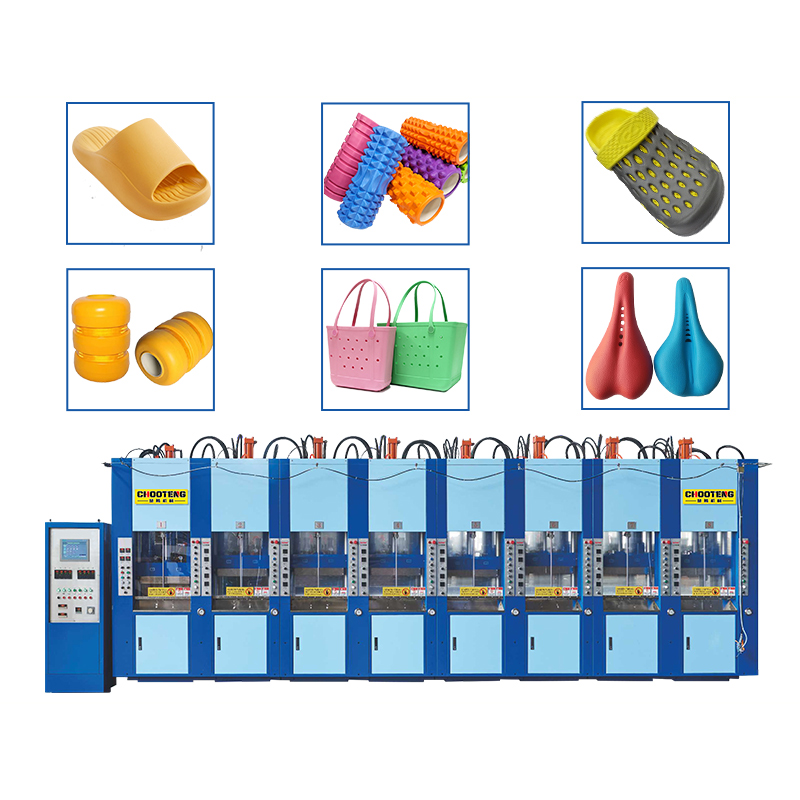

1. Machine application production products: foam EVA slippers,EVA sandals, EVA sole .



2. The thickness of the mold has no stepless adjustment, and the mold can be produced from 100 to 260mm



3. The machine adopts the system design of the Siemens PLC module and the human -machine interface, which accurately controls the amount of shooting and various functions.



4. Fully automated operation and production to reduce labor.

Descriptions

  • Model
    FDE9106
  • Work station number
    6 stations
  • Raw Materials
    EVA
  • Clamping Force
    180T
  • Max mould size
    290*550mm
  • Mould height
    100-260mm
  • Screw diameter
    60mm*2
  • Screw speed
    0-165mm
  • Max injection capacity
    930cm3/cc
  • Injection pressure
    1080cm2
  • Limit of temperature
    4 pints
  • Barrel heat power
    6kw*2
  • Mould heat power
    76.8kw
  • Hydraulic motor power
    55/50kw
  • Total power
    131/126kw
  • Oil Tank Size
    1000kg
  • Machine Size
    8500*4800*2875mm
  • Machine Weight
    26000kg
