1.Applications:Machine can produce of one-color/two-color rain boots.
2.Delivery time :35-40days
3.Model:CT614A
4.Condition:New
5.Certification：CE Certificated
6.Warranty：1 Year
7.Voltage:AC380V /AC220V/50HZ/60HZ.
8.Unit price/Set:46000-56000USD
9.Place of Origin：Fujian, China
10.Port: XIAMEN Port

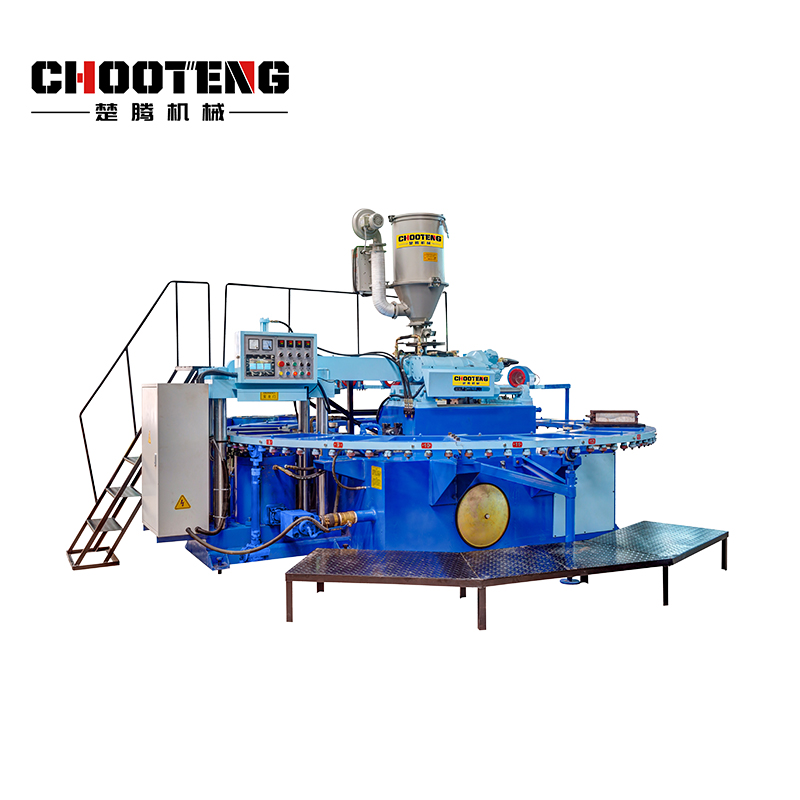

14 Stations Two Color Rain Boot Machine

       Our products are more than 15 years of engineers experience optimization design, each step before the factory through strict testing and selection, to create high-quality products, customers rest assured to use products and create value for customers is our goal.

Product Details

1.14 Stations Two Color Rain Boot  Machine can produce of one color and two color PVC rain boots.



2.The machine is equipped with a fully automatic control manipulator to open the mould, which can save manpower and increase the production of products.



3.The hydraulic system with the dual-ratio control valve enables independent adjustment of pressure and rate of flow to produce high-quality rain boot.



4.The12 Stations Two Color Rain Boot  Machine adopts digital measurement to precisely control rain boot weight.



5.Selecting servo energy conservation system, saving electricity about 30%.



Descriptions

  • Model
    CT614A
  • Working Stations
    14 stations
  • Raw Material
    PVC
  • Injection Capacity
    1275cm3/cc+775cm3/cc
  • Heating power of barrel
    15kw+13kw
  • Screw Speed
    0-150r.p.m
  • Injection hydraulic pressure
    140KG/CM2
  • Limit of temprerature
    5 point
  • Screw Diameter
    90mm+70mm
  • Clamping force
    250 Tons
  • Mould Max. Size
    680mm*420mm*200mm
  • Power of Motor
    22kw+18.5kw
  • Machine Size
    7200mm*5600mm*2460mm
  • Machine Weight
    19.5 Tons

Specification
